Channel Letters

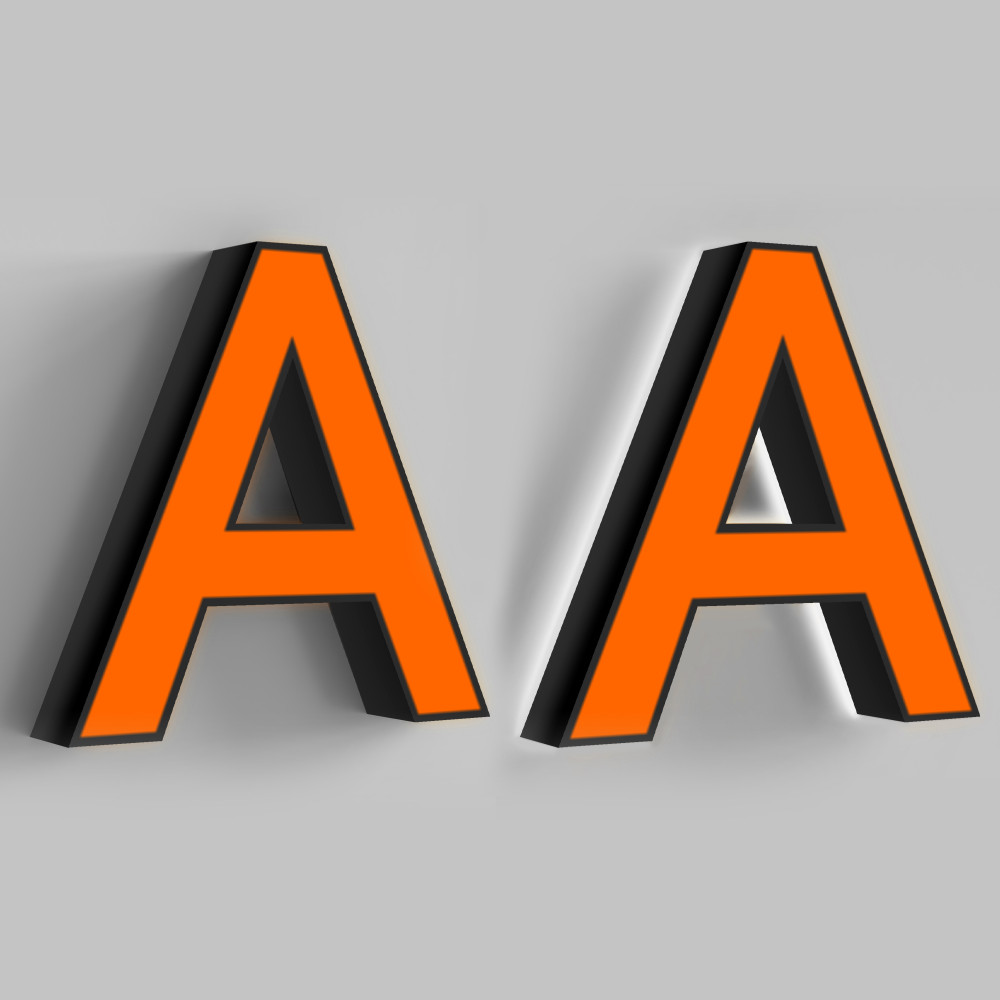

Standard Channel Letters

Ready to install, LED illuminated, UL listed channel letters with included power supplies and installation patterns.

Component	Specification
Trim Cap	3/4" or 1" Jewelite trim caps
Return	3" or 5" .040" Alumet (Metals USA high reflective aluminum)
Face	3/16" Acrylite, Chemcast acrylic, or Palsun Lexan faces
Vinyl (optional)	3M 3630 translucent, 3635 day/night dual color, 3635 blockout colored vinyl, 3M IJ8150 clear vinyl with 8520 matte lamination for digital print
Standard Front Lit Includes	3/4" or 1" trim cap, 3" or 5" .040" Alumet return and backing, 3/16" acrylic face, LED lights, 3' power cord, installation guide and mounting pattern
Standard Front/Back Lit Includes	3/4" or 1" trim cap, 3" or 5" .040" Alumet return, 1/8" Palsun clear Lexan backs, 3/16" acrylic face, LED lights, 3' power cord, installation guide and mounting pattern
LED Lights	Mynice high efficiency, 160 degree beam, IP67, 9000K to 10500K, 0.7W and 1.2W LED module (5 year warranty)
Power Transformer	Fang Hua HMA-60NU-RX 12V/5A 60W, Class 2, constant voltage/current, IP67 (5 year warranty)
Raceway	Customizable length from 10" to 46", multiple segments can be combined for wider applications

Provide vector artwork (AI, EPS, or PDF) with text converted to outlines.
Include overall letter height and requested return depth (3" or 5") in notes.
Specify illumination type (front lit or front/back lit) and trim cap size (3/4" or 1").
Confirm install method (stud mount or raceway) and provide placement notes if applicable.

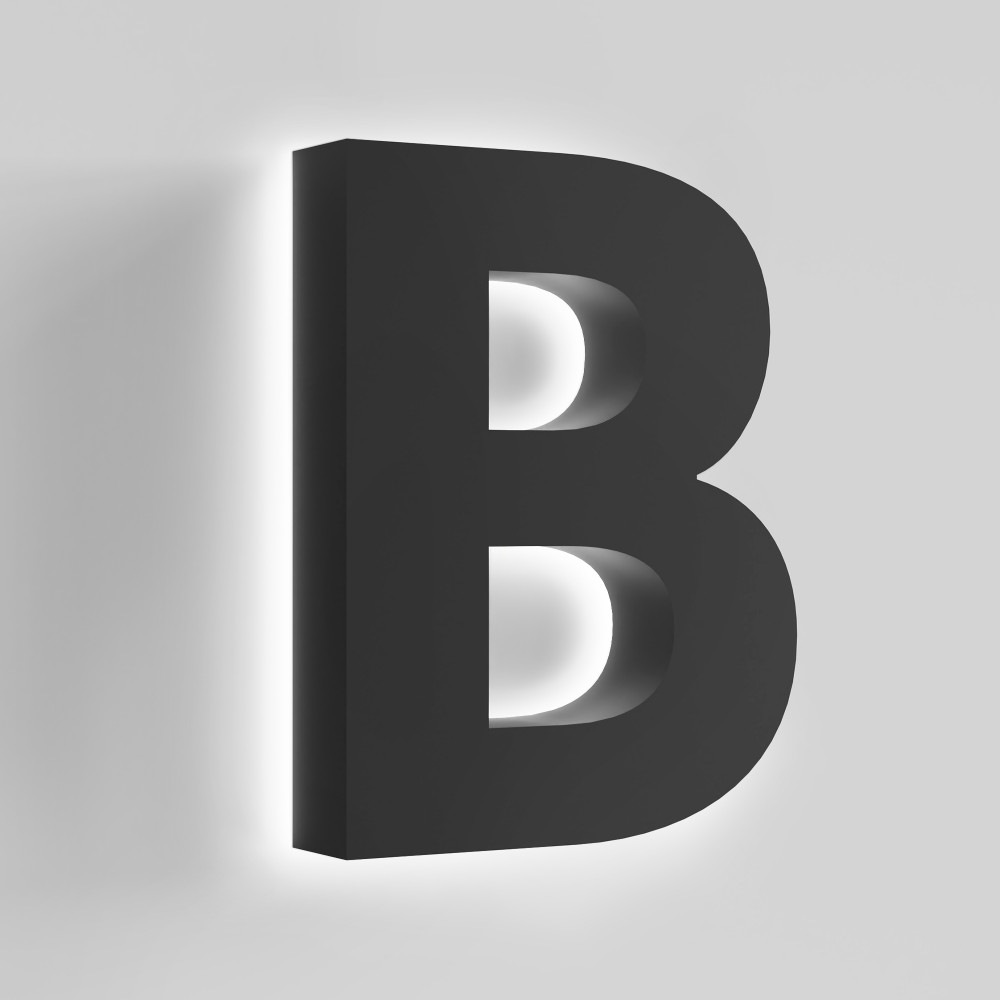

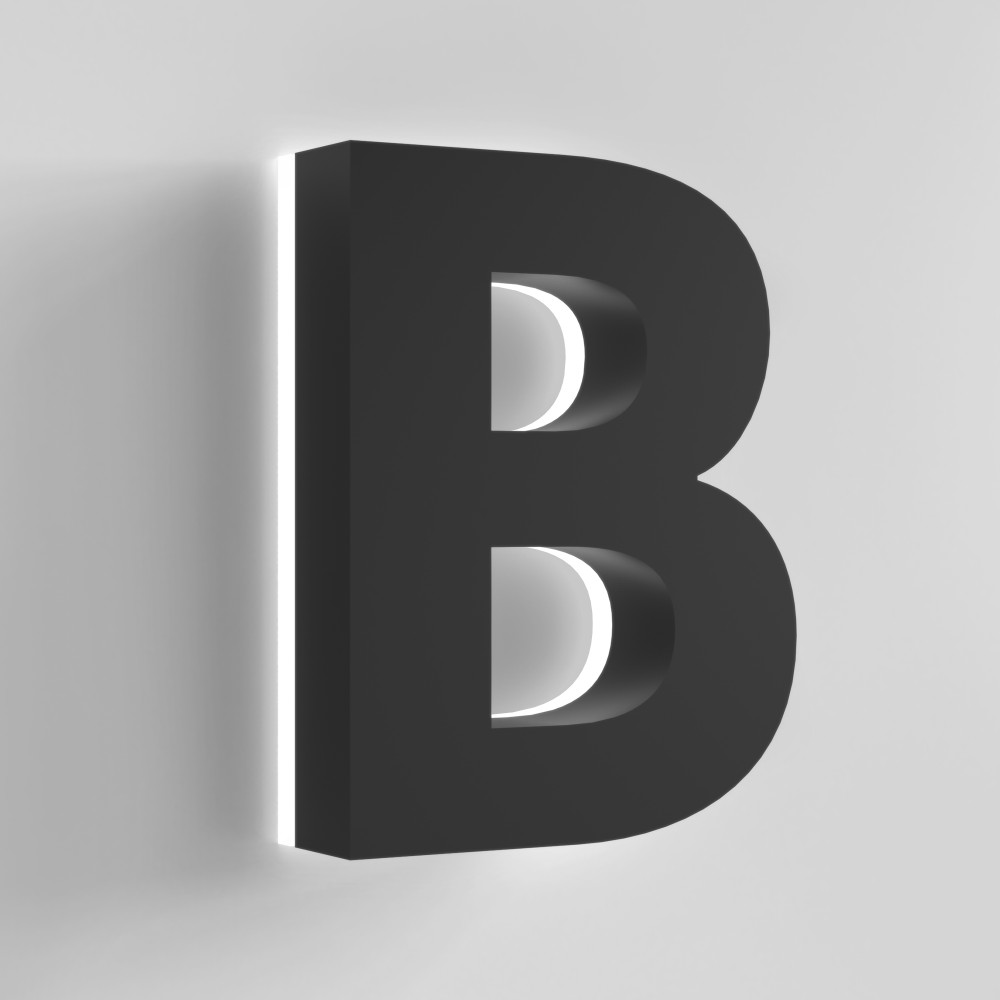

Stainless steel letters with a clear Lexan back that allows LED light to shine through, creating a halo effect on the wall.

Component	Specification
Face	0.8 mm / 1 mm stainless steel
Return	2" or 3" 0.8 mm / 1 mm stainless steel returns
Back	1/8" clear Lexan
LED Lights	Mynice high efficiency, 160 degree beam, IP67, 10000K to 12000K, 0.7W and 1.2W LED module (5 year warranty)
Power Transformer	Fang Hua HMA-60NU-RX 12V/5A 60W, Class 2, constant voltage/current, IP67 (5 year warranty)
Raceway	5.5" height x 3.5" depth, length customizable from 10" to 46" (multiple segments for wider applications)

Provide vector artwork (AI, EPS, or PDF) with text converted to outlines.
Include overall letter height and requested return depth (2" or 3") in notes.
Specify return color and paint preference (35+ options).
Confirm install method (stud mount or raceway) and provide placement notes if applicable.

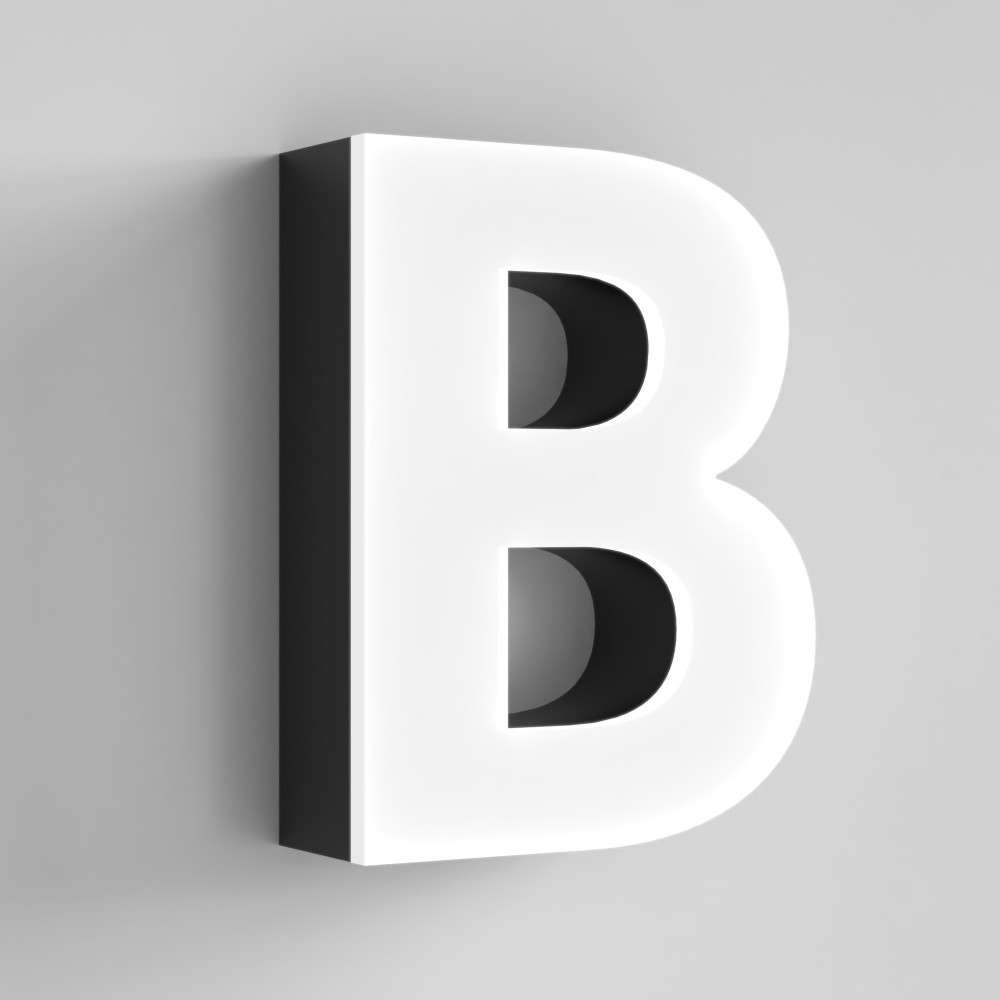

High end channel letters with acrylic faces and fabricated, welded stainless steel returns.

Select a premium style below for full details and specifications.
