Description

Front Lit

Choose single or double-sided illumination.

Front and Back Lit

Choose single or double-sided illumination.

Buying options: Front Lit or Front and Back Lit. Kits include wiring diagrams and mounting patterns.

• Ready-to-install: Wiring diagrams and mounting patterns included
• Certified: UL Certified for outdoor installation
• 5 Year Warranty

Components

Core construction options for trim cap, return depth, face materials, vinyl, and raceway setup.

Material Options

Choose face, return, trim cap, and vinyl options based on color, finish, and performance.

Trim Cap

3/4" or 1" Jewelite trim caps. Plastic molding that surrounds the acrylic face.

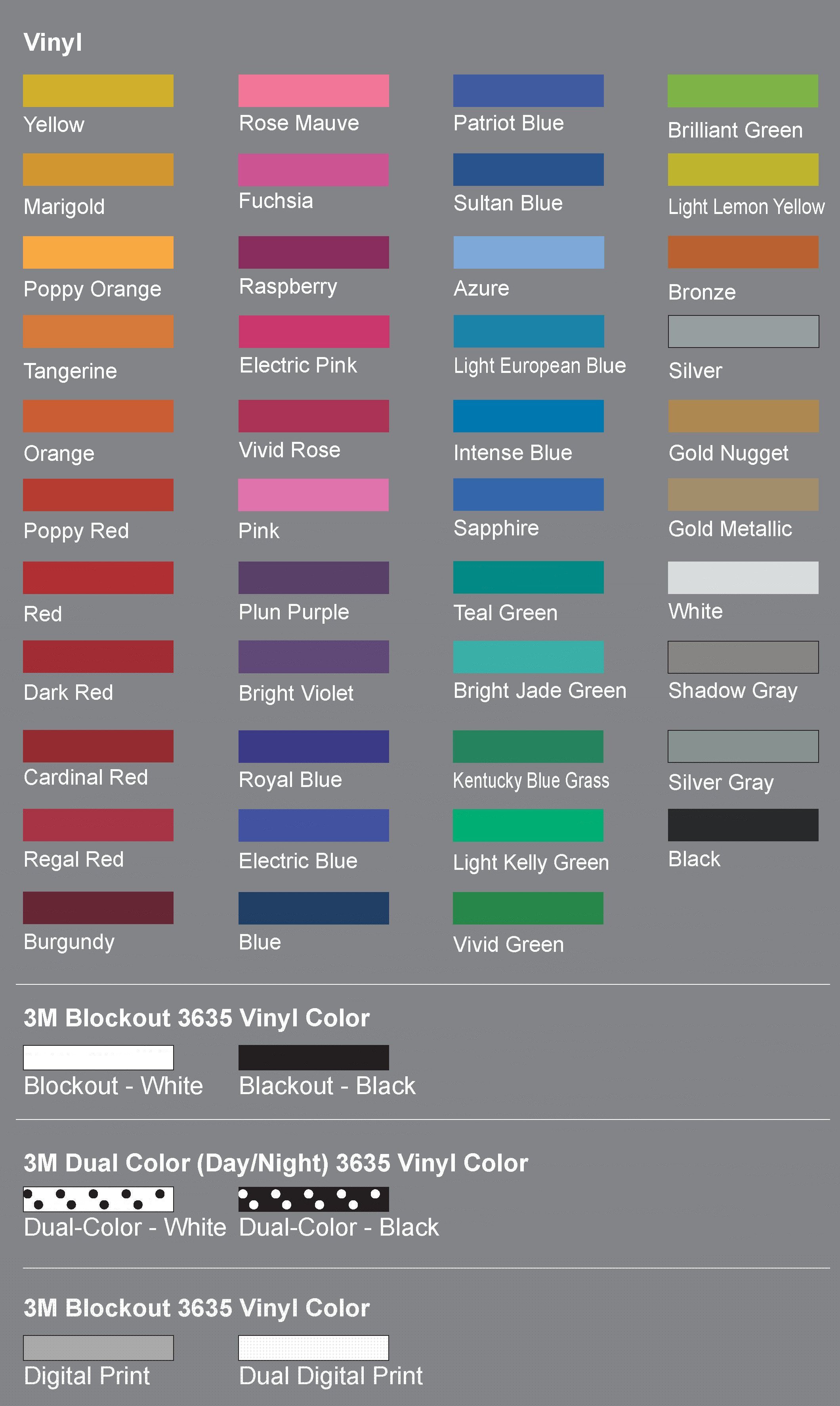

Vinyl Options

3M 3630 Translucent, 3635 Day/Night, 3635 Blockout, IJ8150 Clear with lamination. Used when an acrylic hue is unavailable.

Return (Sides)

3" or 5" depth using .040" Alumet (high-reflective aluminum) to form the letter depth and borders.

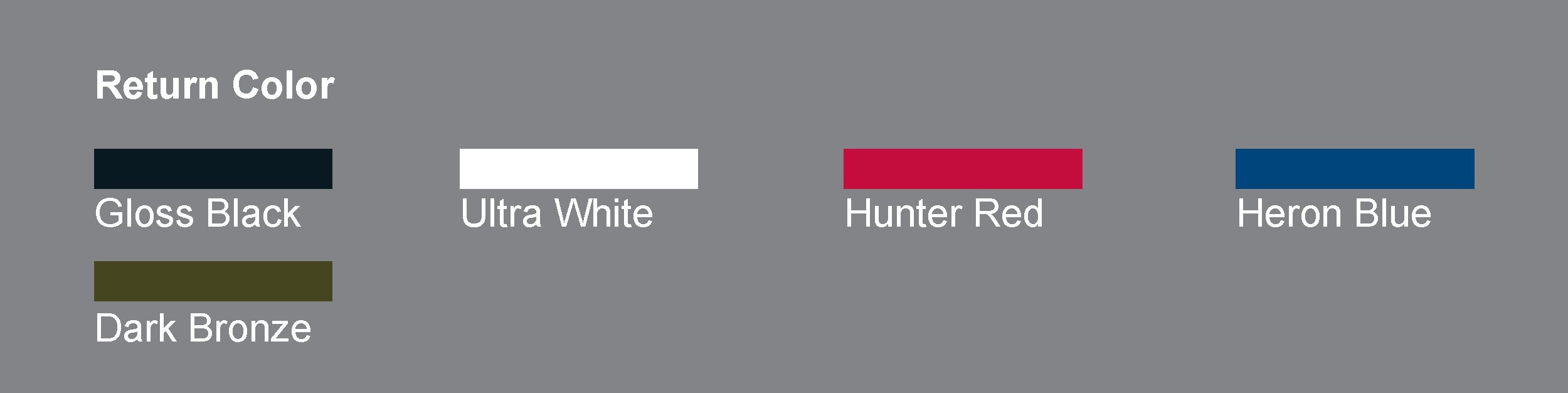

Return Options

Return depth options and build details for common channel letter applications.

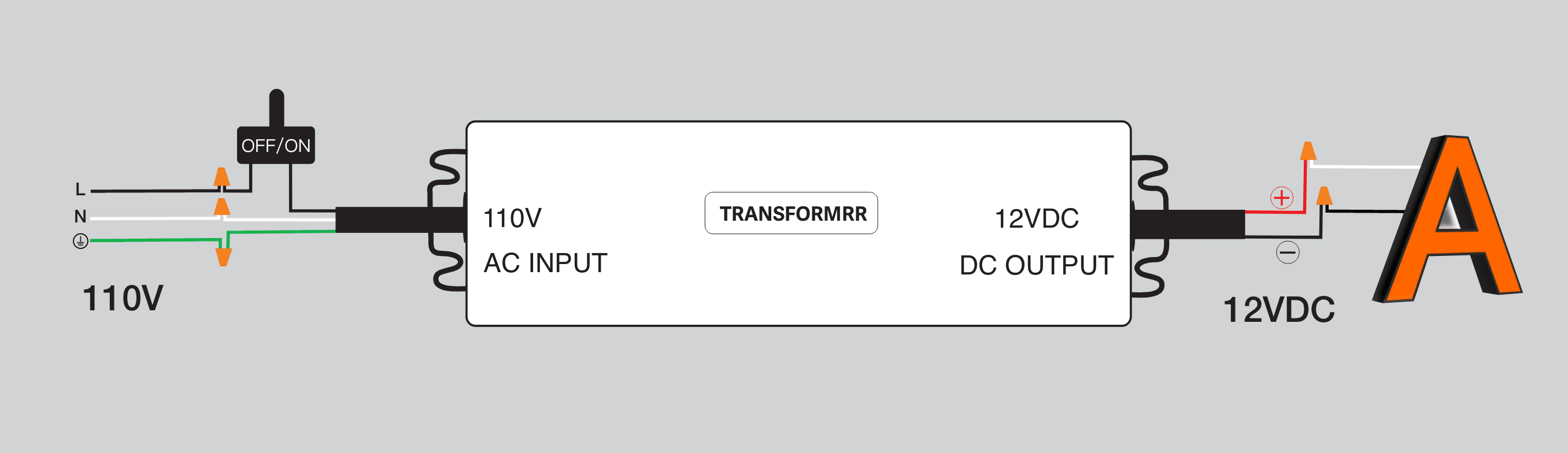

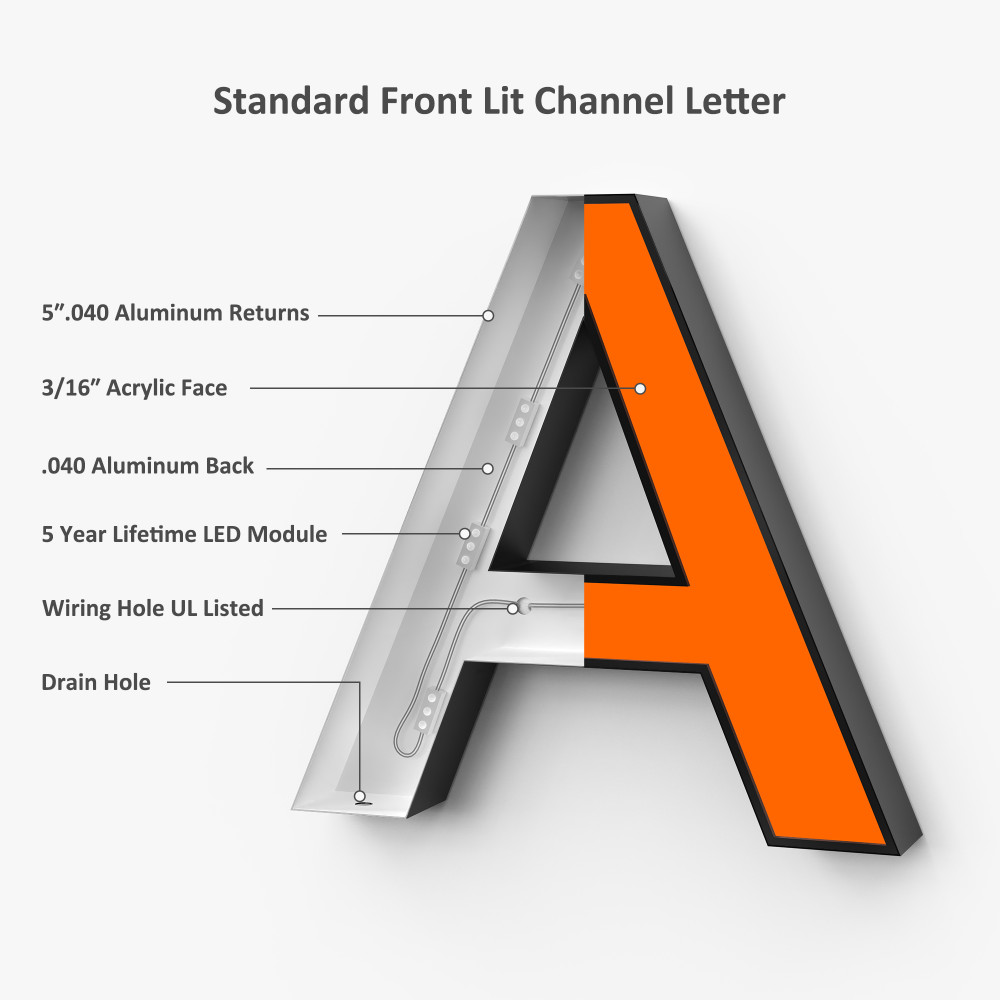

Specification Sheet

Core construction and component summary for standard channel letters.

Parts Layout

Lay out parts before assembly to confirm hardware and placement.

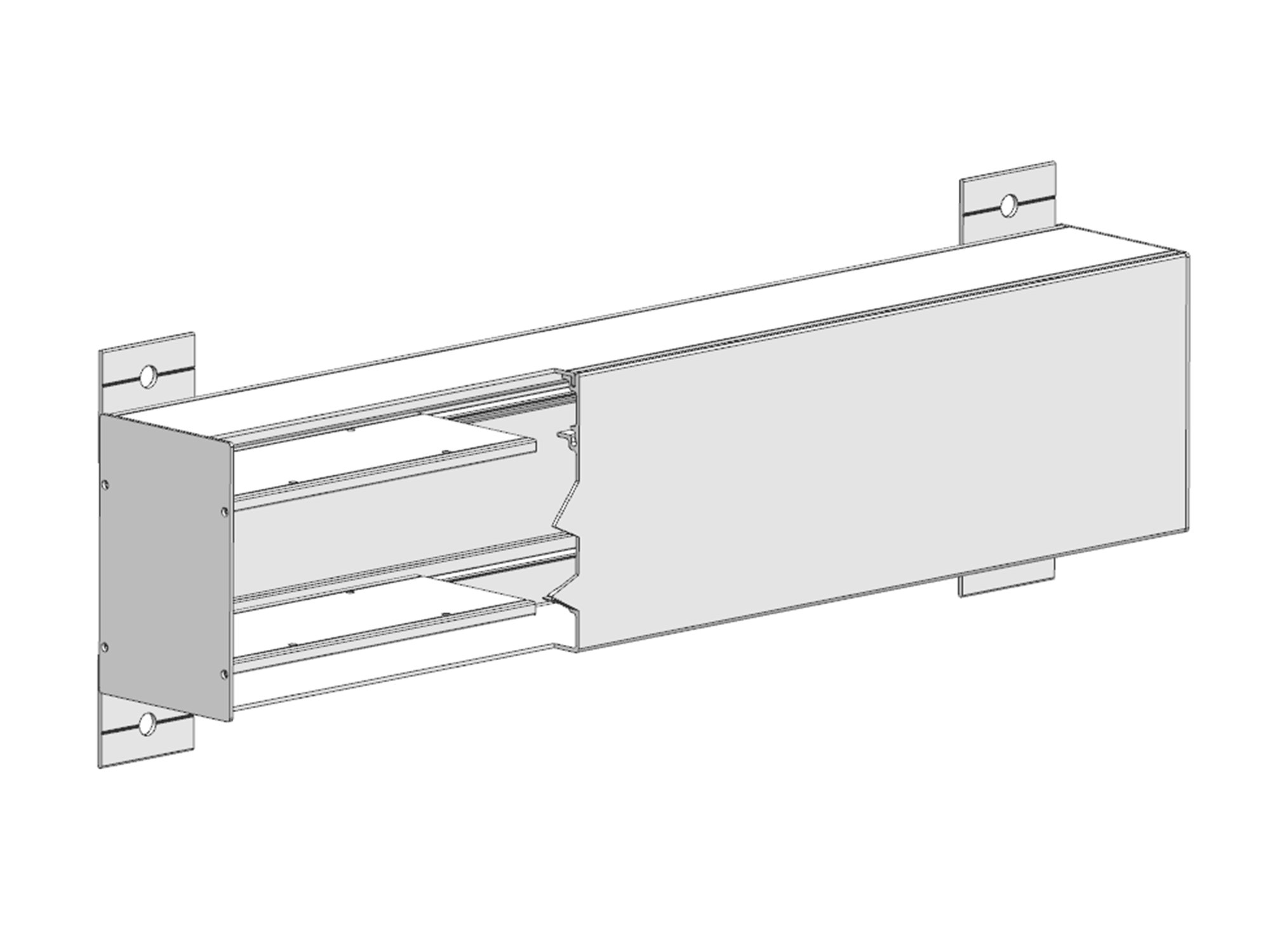

Assemble Raceway

Assemble the raceway sections and prep mounting points.

Install Hanger Hardware

Install hanger hardware and confirm alignment prior to mounting.

Quick Specs

• Trim Cap: 3/4" or 1" Jewelite trim caps
• Return (Sides): 3" or 5" depth, .040" Alumet
• Face: 3/16" Acrylite, Chemcast Acrylic, or Palsun Lexan
• LEDs: Mynice High Efficiency, IP67, 9000K-10500K, 0.7W and 1.2W
• Power Transformer: Fang Hua HMA-60NU-RX, 12V/5A 60W, IP67 (dry locations only)
• Raceway: Custom length 10" to 46" (segmentable for wider installs)
