Description

Front

Solid stainless steel face in 35+ colors.

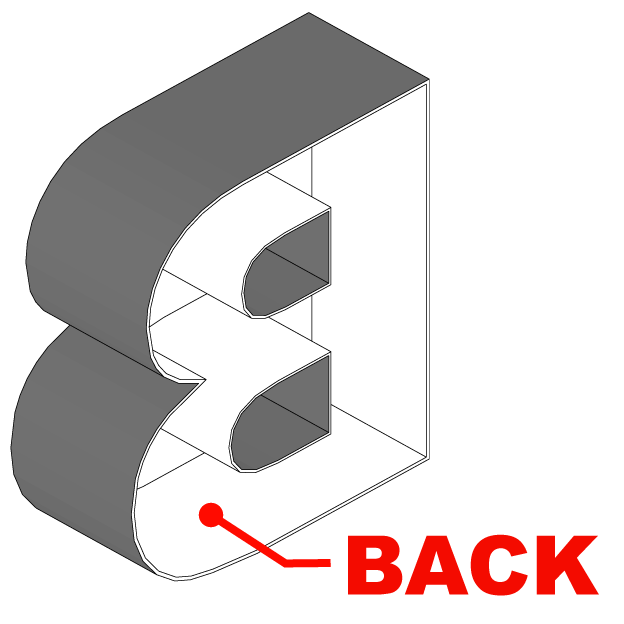

Back

Clear Lexan back allows light to pass through and create the halo on the wall.

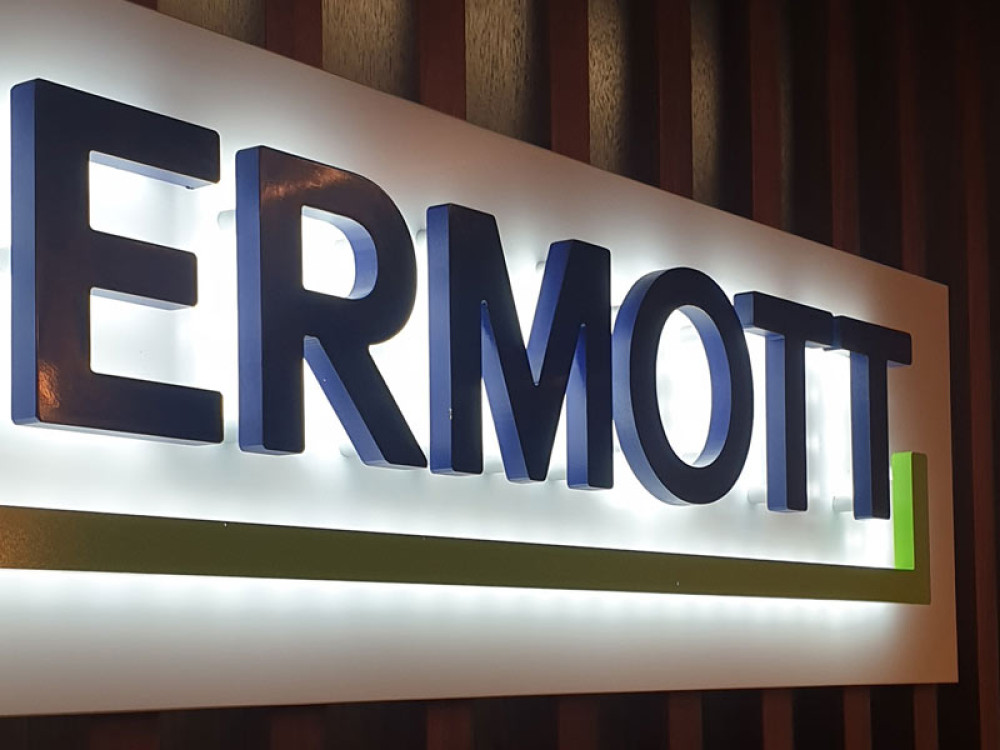

Primary visual effect: halo illumination. Light shines through the clear back and illuminates the wall behind the letter.

• Face: 0.8mm or 1mm stainless steel (35+ colors)
• Return: 2" or 3" depth stainless steel
• Back: 1/8" clear Palsun Lexan for the halo effect
• LEDs: Mynice High Efficiency, IP67, 10000K to 12000K, 0.7W and 1.2W
• Power: Fang Hua HMA-60NU-RX, 12V/5A 60W, IP67 (dry locations only)
• Raceway: 5.5"H x 3.5"D, 10" to 46" lengths (segmentable)

Components

Key materials and hardware for reverse lit channel letters.

Face

0.8mm or 1mm stainless steel face. Solid, painted stainless steel provides durable color and a premium finish.

Color Chart

35+ face color options for stainless steel finishes.

Return (Sides)

2" or 3" depth. Stainless steel return matches the face material and color.

Back

1/8" clear Palsun Lexan back. This is what creates the halo effect by allowing LED light to pass through.

Power Transformer

Fang Hua HMA-60NU-RX, 12V/5A 60W, IP67 (5-year warranty). For dry locations only.

Raceway Installation Guide

List out parts

Lay out all raceway parts and hardware first.

Assemble Raceway

Assemble raceway sections before mounting.

Put Hanger on

Install hangers and confirm alignment prior to mounting.
